Huixian Xinda Textile Machinery Parts Co., Ltd. provides Loom Weft Grid J00-2 Without Iron Wrapping, a new type of (iron free) gantry Barrier J00-2 weaving machine shuttle box component. The shuttle box accessory J00-2 for weaving machines is composed of J50 steel wire and J31 Weft Grid. The J50 steel wire is in a "U" shape with a diameter of 1.8mm and is made of spring steel. The J30 material is A3, and the height of the fixed steel wire surface is 97mm. The new iron free gantry Barrier is generally used for the modification of wide weaving machines. Friction pads made of other materials (such as asbestos copper wire) are added to the tail of the tongue 3304 on the back plate of the shuttle box, so bent iron is not used.

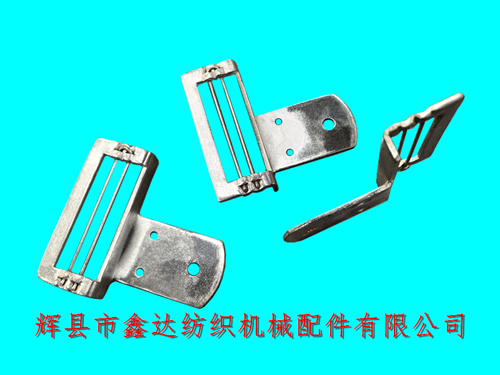

The side standing gantry Barrier in the above picture shows that there is no bent iron wrapping on its back. J00-2R is the right-hand Weft Grid (bottom right corner in the above picture), and J00-2L is the left-hand Weft Grid (bottom left corner in the above picture).

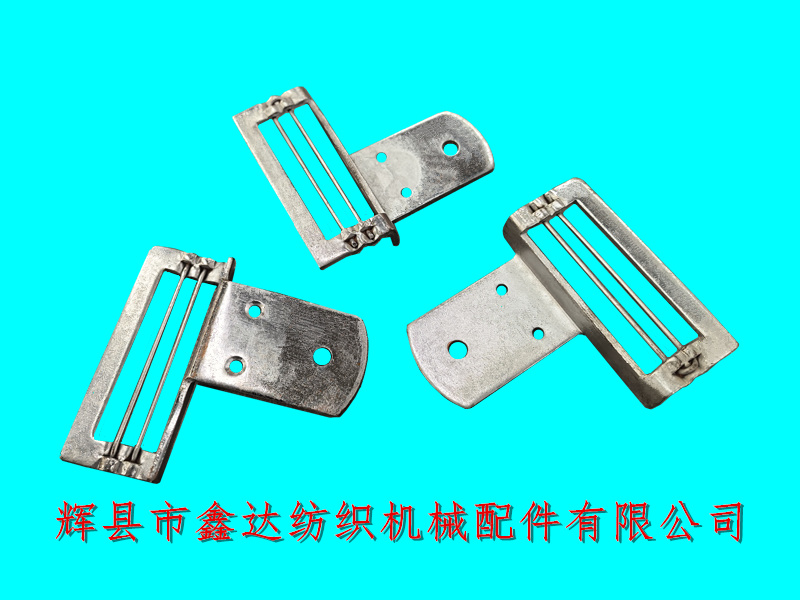

The above picture shows a regular J00-2 Weft Grid with curved iron wrapping. The appearance of these two types of Weft Grids is basically the same, and the surface is mainly treated with electroplating zinc. Each automatic shuttle changing weaving machine uses one gantry Barrier, while manual shuttle changing machines with modified shuttle boxes use one pair (one left-handed and one right-handed).
The gantry Barrier is a hardware component of the weaving machine, and the grille in the middle is the front travel range of the J32 weft fork. It is mainly used to check whether there is weft yarn during the weaving process of the weaving machine equipment. If there is a lack of weft yarn, the parking device will be triggered.
If you need to order the new (iron free) gantry Barrier J00-2 loom shuttle box components, 1511 weft grids, 1515 hardware components, GA615 shuttle box components,Loom Weft Grid J00-2 Without Iron Wrapping and K88 iron wrapped products, please contact Mr. Yang from our company. Welcome to consult and negotiate.
